Henegan Cabinet Door

This door features a bevel profile on the inside of the rail. The bevel is subtle but it adds additional interest beyond a standard shaker door. It's a tweak on a classic design that solves the problem of dust settling on the rails. It is easier to clean, and needs to be cleaned less often, than a classic shaker door that lacks the bevel.

Category: Shaker Doors
Profile: 66
Stile and Rail Width: 57mm
Center Panel: F1
Lip:0

Cabinet door thickness is 13/16" (20.6mm)

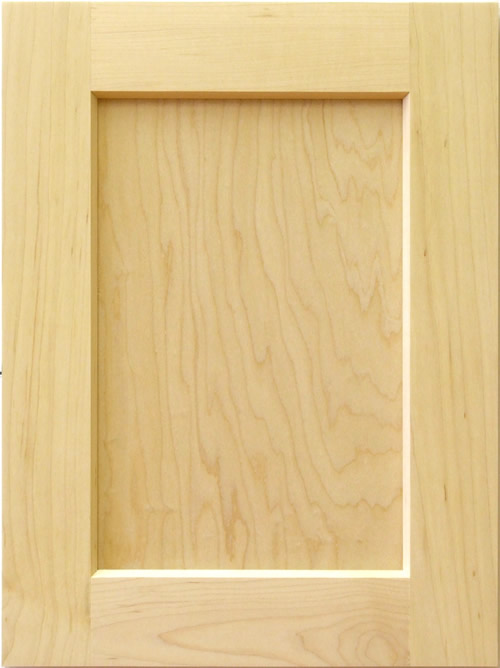

Shown in Hard Maple unfinished
Door size pictured is 11 3/4" x 15 3/4"

Henegan Cabinet Door

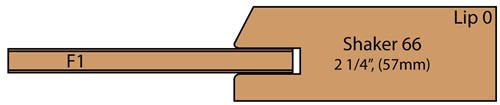

cross section of Henegan cabinet door

The Henegan door style is available in any wood species. This 43 second YouTube video provides a 360 degree view of the Henegan door made from Walnut. The door in the video features an optional solid center panel with reverse raise. The center panel option code is F2.
