Cabinet door thickness is 20.6mm (13/16")

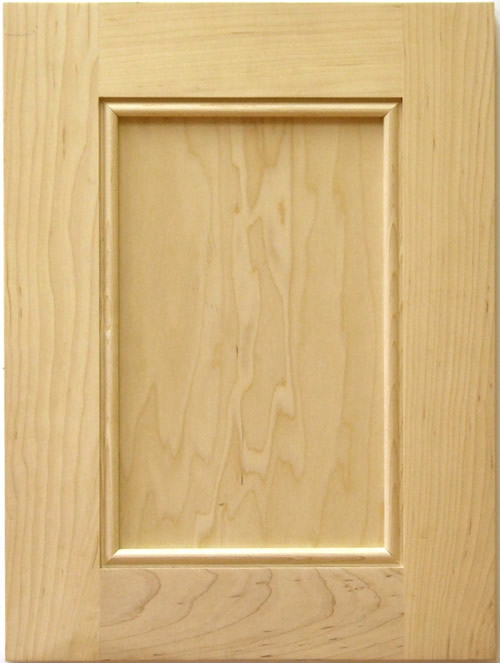

Shown in Maple unfinished
Door size pictured is 11 3/4" x 15 3/4"
Stonybrook Information

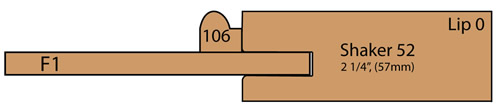

What is the width of the 106 moulding?
The 106 moulding is 3/8 inches wide.
What is the minimum width for doors in the Stonybrook style?
The minimum door width is 4-7/8 inches. This is achieved by reducing the stiles from 2-1/4 inches to 1-5/8 inches. The 106 moulding remains at 3/8 inches wide. The minimum width of exposed panel is 7/8 inch between the mouldings. As the door width is increased we widen the stiles first then expand the exposed panel width. The minimum width without reductions is 7-1/4" which leaves 2 inches of panel exposed.
